The explosion-proof ATEX LED tube light is ideal for installation in machines, vehicles and devices of all types, where safety is required with regard to explosion protection. Optimum and bright illumination of the workspaces is guaranteed by six integrated POWER LED modules. The mounting brackets are included in the scope of delivery ensure easy assembly.
Type: LED | tube luminaire | machine lamp | fixture | ex-proof (ATEX) | EX-Zones: Zone 1 & 2 , Zone 21 & 22 | IP68 |
ATEX Identification
 |
II 2 G |
Ex eb mb op is IIC T4 Gb |
| |
Tool group: II |
| |
Hazardous zone: 1 and 2, 21 and 22 |
|
II 2 D |
Ex tb op is IIIC T105° Db |
| |
Category: 2G and 2D |
| |
Temperature class T4 |
Highlights
- ex-proof tube luminaire with 6 POWER LEDs / 6500K
- Protection tube: polycarbonate, shock-resistant, 40mm Ø
- End cap: aluminium, black anodized
- Fixation: incl. 2 fixing clamps made of plastic
- Protection category: IP68 - 50m/5h (dust- and waterproof)
- Protection class: II / III
- Cable standard version: 10m H07BQ-F 2 x 1,5 mm² (extendable in 5 m steps)
- Standard version without plug, Ex plug (ATX, CEAG,) available on request
- Available in the voltage versions: 230 Volt / 110 Volt / 42 Volt / 24 Volt / 12 Volt
- Special requests - as covered by our Ex-certificaton - can be fulfilled
Technical specifications
| KE-LED-EX 4006-O tube luminaire |
| Version |
230 Volt |
110 Volt |
42 Volt |
24 Volt |
12 Volt |
| Nominal voltage |
220-240V AC |
110V AC/DC |
42V AC/DC |
24V AC/DC |
12V AC/DC |
| Current |
0,05 A |
0,05 A
|
0,11 A |
0,18 A |
0,29 A |
| Protection class |
II |
II |
II |
III |
III |
| Number LED |
6 |
6 |
6 |
6 |
6 |
| Power |
7 watts |
6,4 watts |
5,5 watts |
5,3 watts |
4,2 watts |
| Real lumen of the light source |
520 Lm |
460 Lm |
400 Lm |
520 Lm |
370 Lm |
| Color temperature (CCT) |
6500 K / 4-SDCM |
6500 K |
6500 K |
6500 K |
6500 K |
| CRI |
> 70 |
> 70 |
> 70 |
> 70 |
> 70 |
| Lifetime LED |
> 50.000h |
> 50.000h |
> 50.000h |
> 50.000h |
> 50.000h |
| Tamb |
-20°C - +50°C |
-20°C - +50°C |
-20°C - +50°C |
-20°C - +50°C |
-20°C - +50°C |
| IP protection class |
IP68 |
IP68 |
IP68 |
IP68 |
IP68 |
| Integrated diffuser film |
no |
no |
no |
no |
no |
| Material protection tube |
Polycarbonate |
Polycarbonate |
Polycarbonate |
Polycarbonate |
Polycarbonate |
| End cap |
Alu., anodized |
Alu., anodized |
Alu., anodized |
Alu., anodized |
Alu., anodized |
| Mounting bracket |
included |
included |
included |
included |
included |
| Cable |
10m H07BQ-F |
10m H07BQ-F |
10m H07BQ-F |
10m H07BQ-F |
10m H07BQ-F |
Plug
|
no |
no |
no |
no |
no |
| Weight |
ca. 1,65kg |
ca. 1,65kg |
ca. 1,65kg |
ca. 1,65kg |
ca. 1,65kg |
| Zones |
1, 2, 21, 22 |
| Explosion protection gas ATEX |
II 2 G Ex eb mb op is IIC T4 Gb |
| Explosion protection dust ATEX |
II 2 D Ex tb op is IIIC T105°C Db |
| ATEX Number |
TÜV 18 ATEX 8184 |
Luminaire contains light source
with energy efficiency class |
 |
|
|
 |
|
| Energy efficiency class |
|
|
|
|
|
| |
Special designs - longer supply line, cable type, plug, IP etc. on request. |
Dimensions
| Dimensions in mm |
a |
b |
c |
d |
e |
f |
g |
h |
| KE-LED-EX 4006/... |
35 |
265 |
125 |
45 |
20 |
43 |
40 |
470 |
Fixing clamp D40 EX
| Dimensions in mm |
a |
b |
c |
d |
e |
f |
| BFK D40 EX |
67 |
25 |
20 |
40,4 |
57 |
1x |
Article
| Type |
Voltage |
Art.-No. |
KE-LED-EX 4006/230 fixture
|
230V AC |
146100 |
KE-LED-EX 4006/110 fixture
|
110V AC/DC |
146110 |
KE-LED-EX 4006/42 fixture
|
42V AC/DC |
146120 |
KE-LED-EX 4006/24 fixture
|
24V AC/DC |
146130 |
KE-LED-EX 4006/12 fixture
|
12V AC/DC |
146140 |
Special requests - as covered by our Ex-certificaton - can be fulfilled.
Accessoires
| Type |
Description |
Art.-No. |
|
SFO-EX 40xx
|
Protective foil, antistatic |
291249 |
|
| BFK D40 EX |
Mounting bracket |
290432 |
|
KM 40-EX-KL
|
Permanent magnet, rubber coated, incl. mounting bracket |
291275 |
|
ATEX transformers
|
see ex accessories |
|
|
SELV transformers
|
see standard accessories |
|
|
Areas of application
Vehicle construction
Can be used as a lighting solution in tanker construction in the area of filling and dispensing fittings.
Mechanical engineering
Lighting for machines and systems where EX protection or IP68 protection is required.

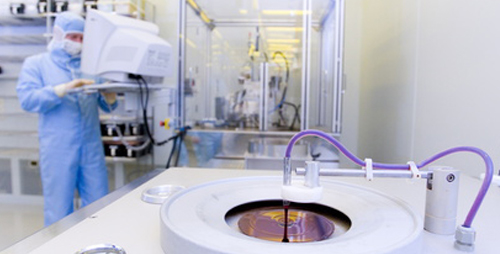

Cleanroom Technology
Lighting solutions for plants in clean room technology.
